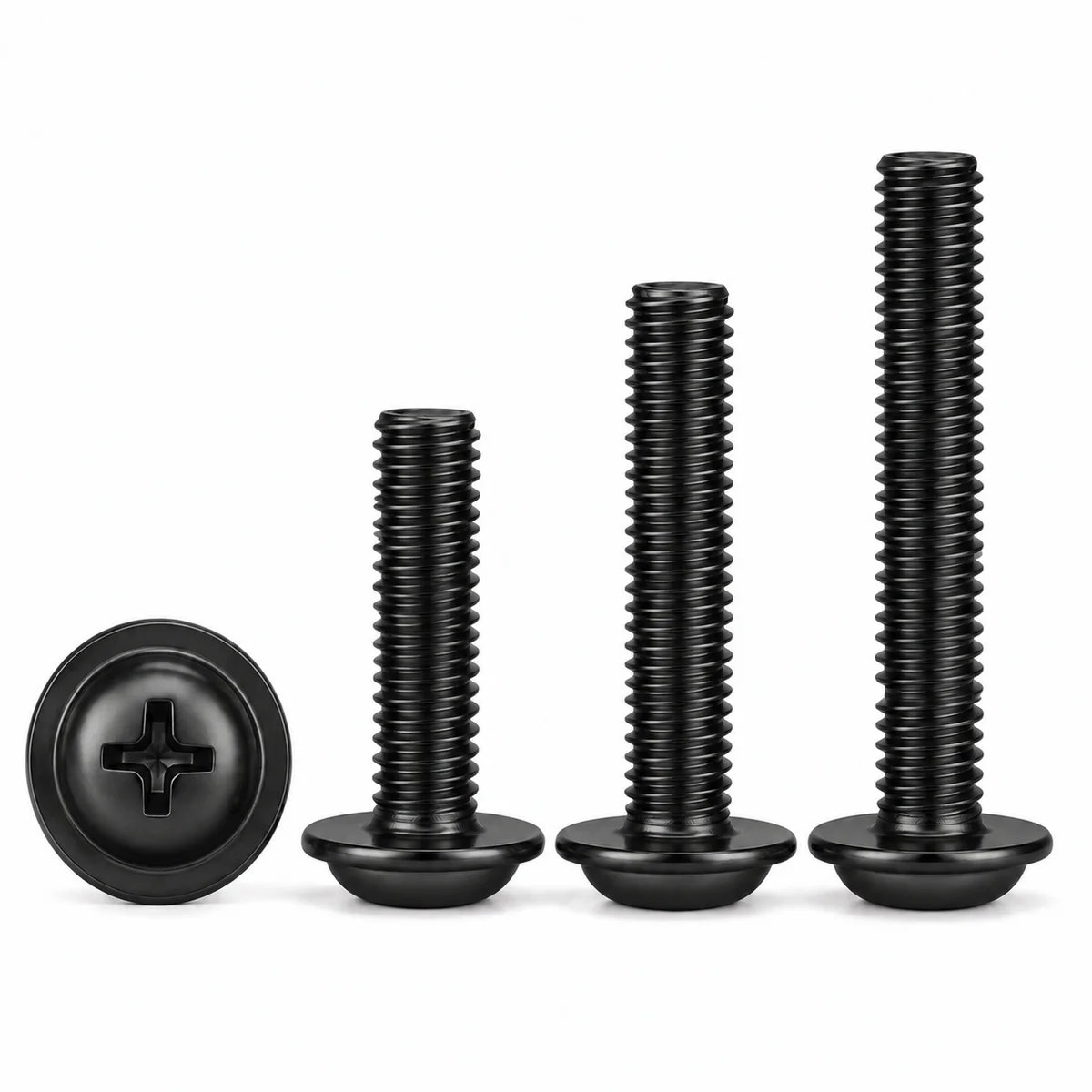

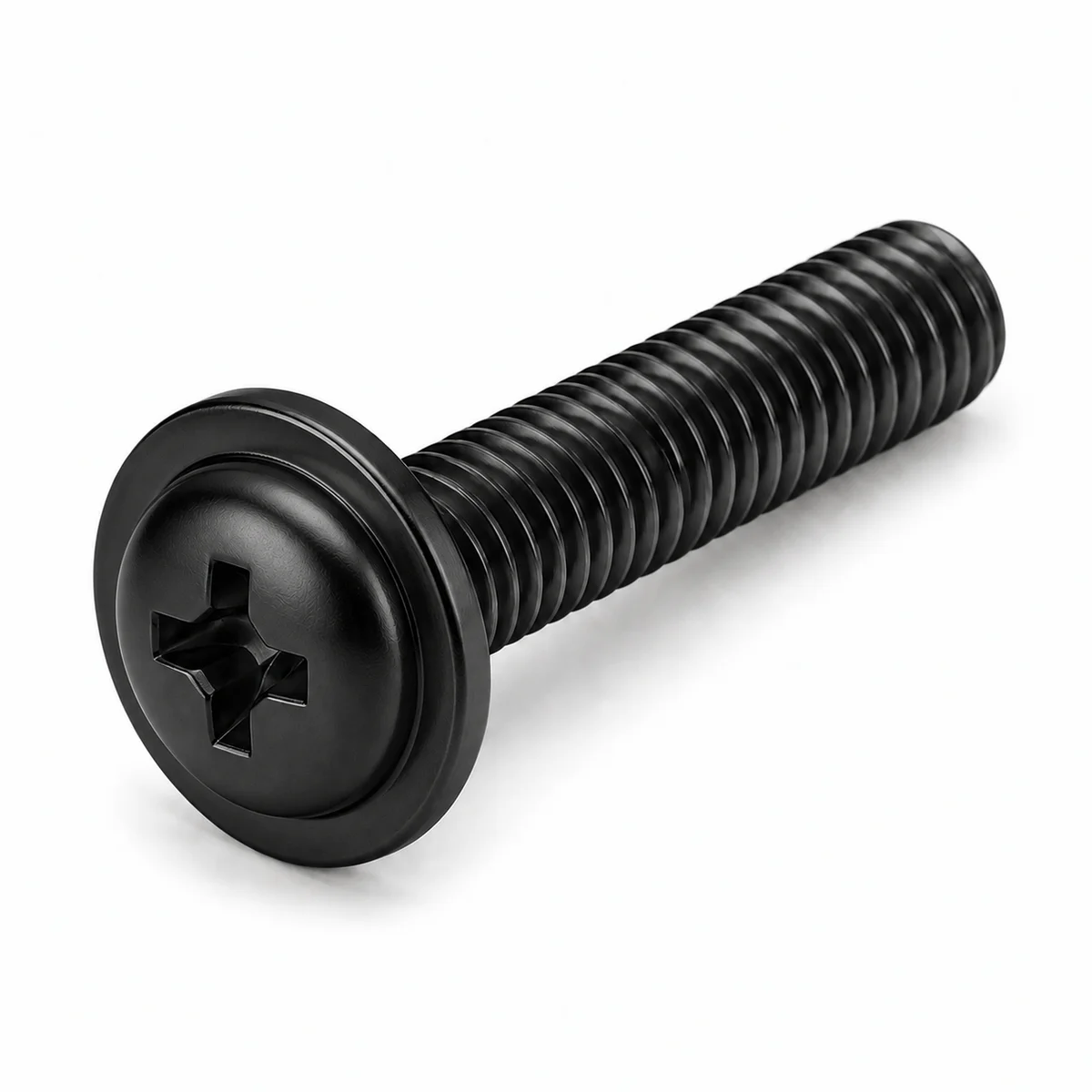

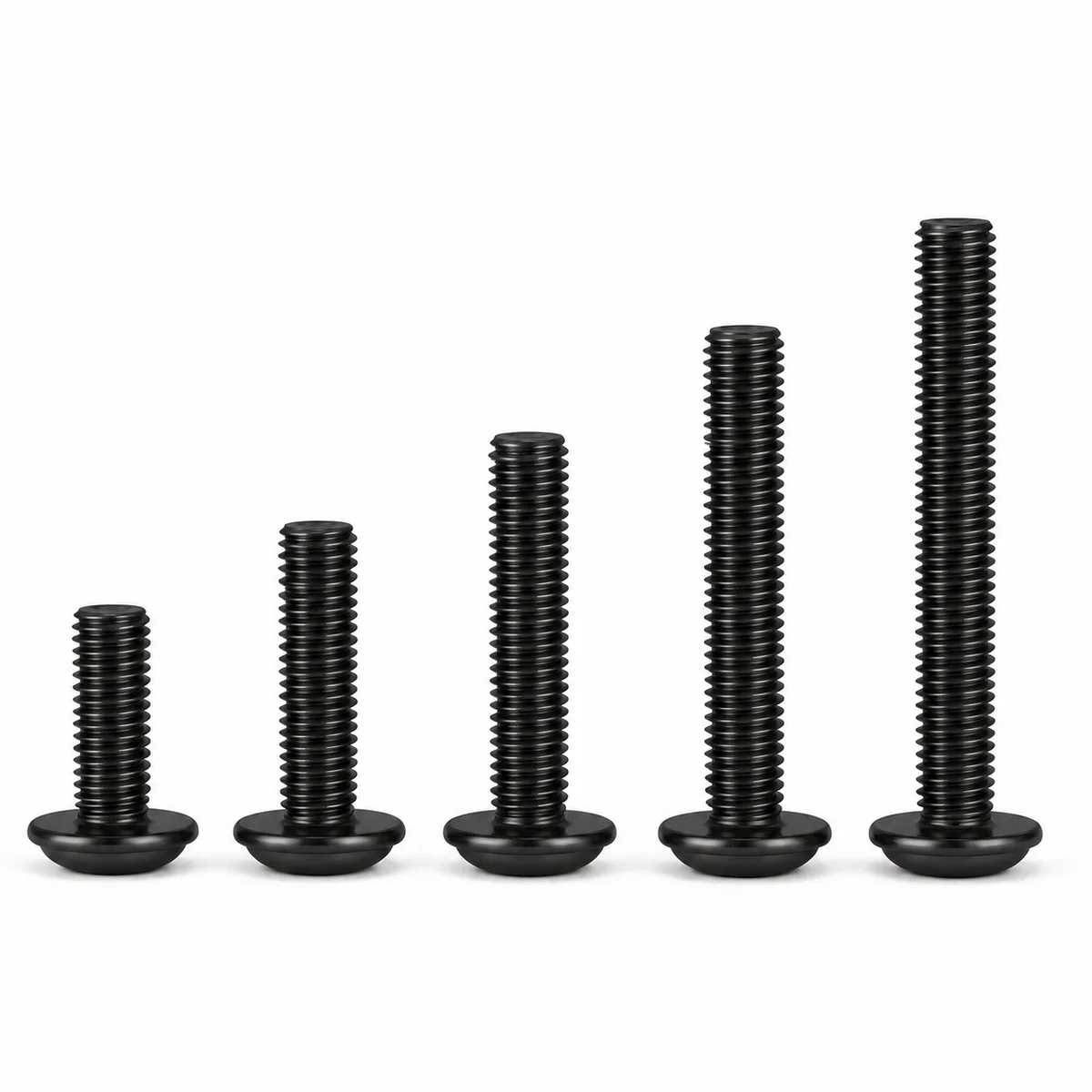

Product photography of the screw & washer assemblies family. Item shown is a catalog representative; exact specification is confirmed with your quotation.
Pan Head Machine Screw & Washer Assemblies (PWM Series) — Black Oxide
Pan head machine screw-and-washer assemblies — pre-fitted washers over tapped joints.
MOQ depends on specification — contact us · Quotation based on quantity and specification. Every inquiry is answered by a person.
Specifications
| Series code | PWM series |
|---|---|
| Material | Carbon Steel |
| Finish | Black Oxide |
| Head type | Pan + Washer |
| Drive | Cross recess (Phillips) |
| Thread | Machine thread |
| Size range | Available sizes on request — depends on specification |
| Packaging | standard export packing — details with quotation |
| MOQ | MOQ depends on specification — contact us |
| Lead time | Depends on stock status and sourcing route — confirmed with your quotation |
Applications
- High-volume lines with tapped holes
- Electronics and appliance assembly
- Workstations reducing parts handling
Technical notes
Machine thread for pre-tapped seats, with the load-spreading washer pre-fitted — one part, one operation.
Pan Head Machine Screw & Washer Assemblies (PWM Series) — Black Oxide — FAQ
Machine thread or self-tapping?
These run into pre-tapped holes. For one-step assembly without tapping, see the self-tapping washer assemblies (PWA series).
