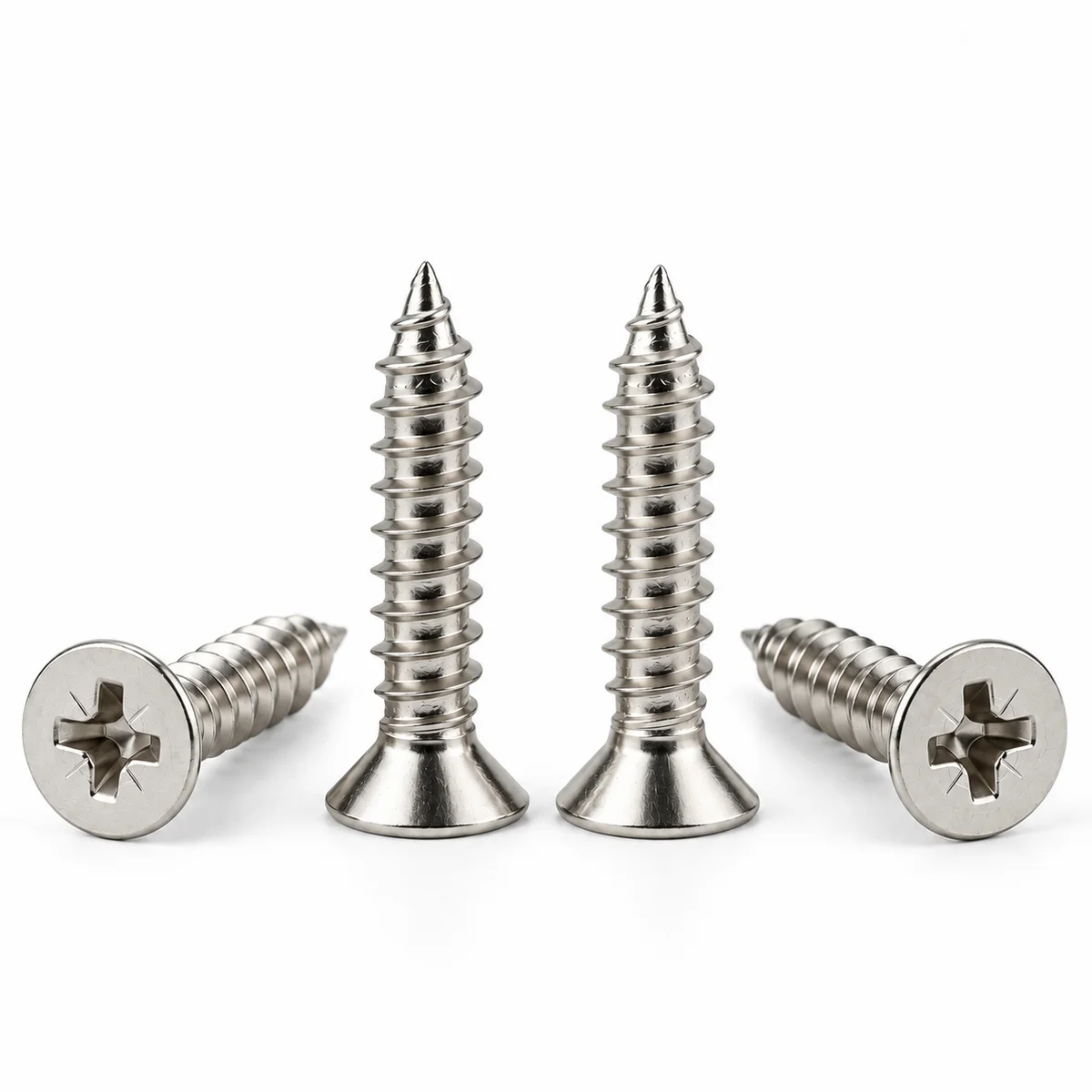

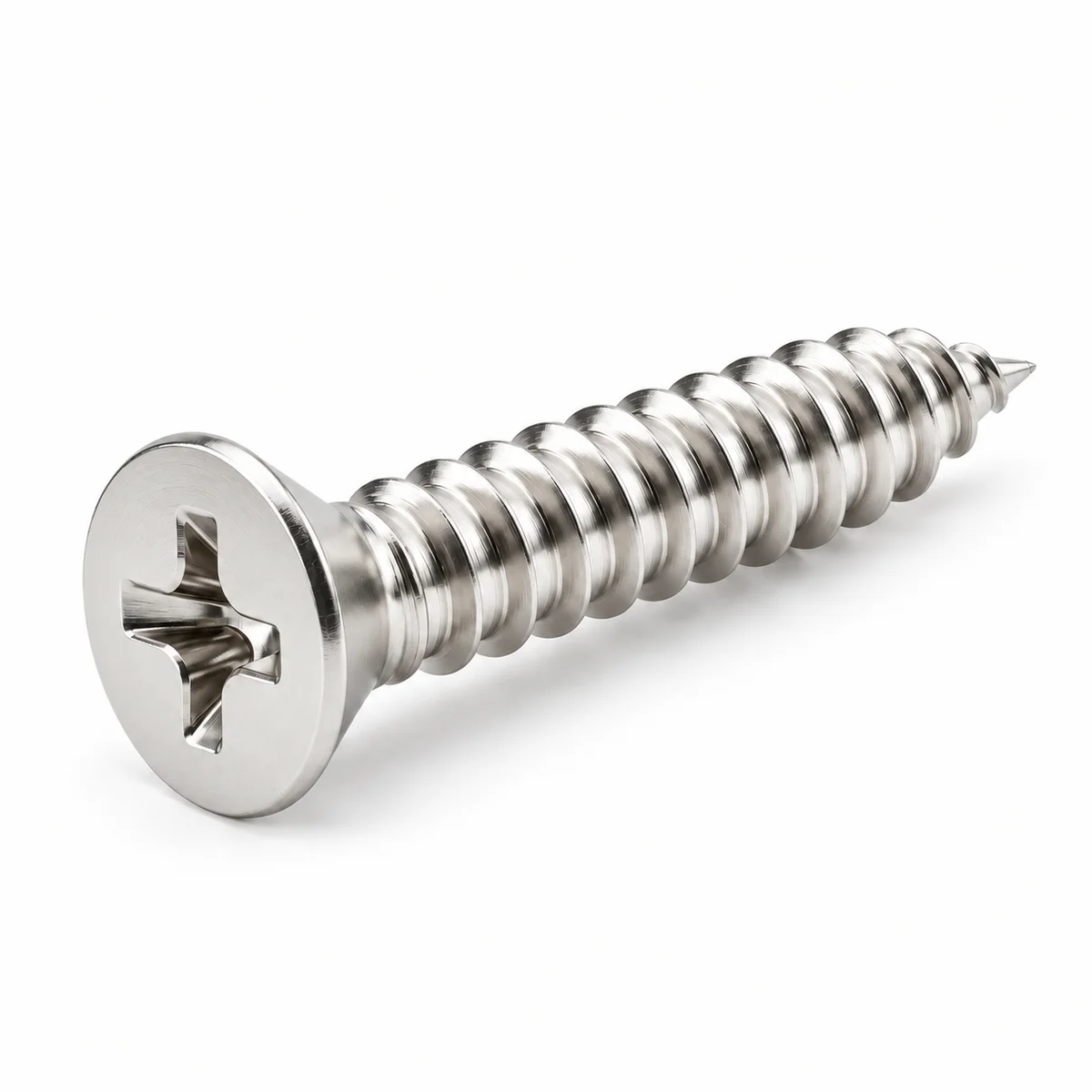

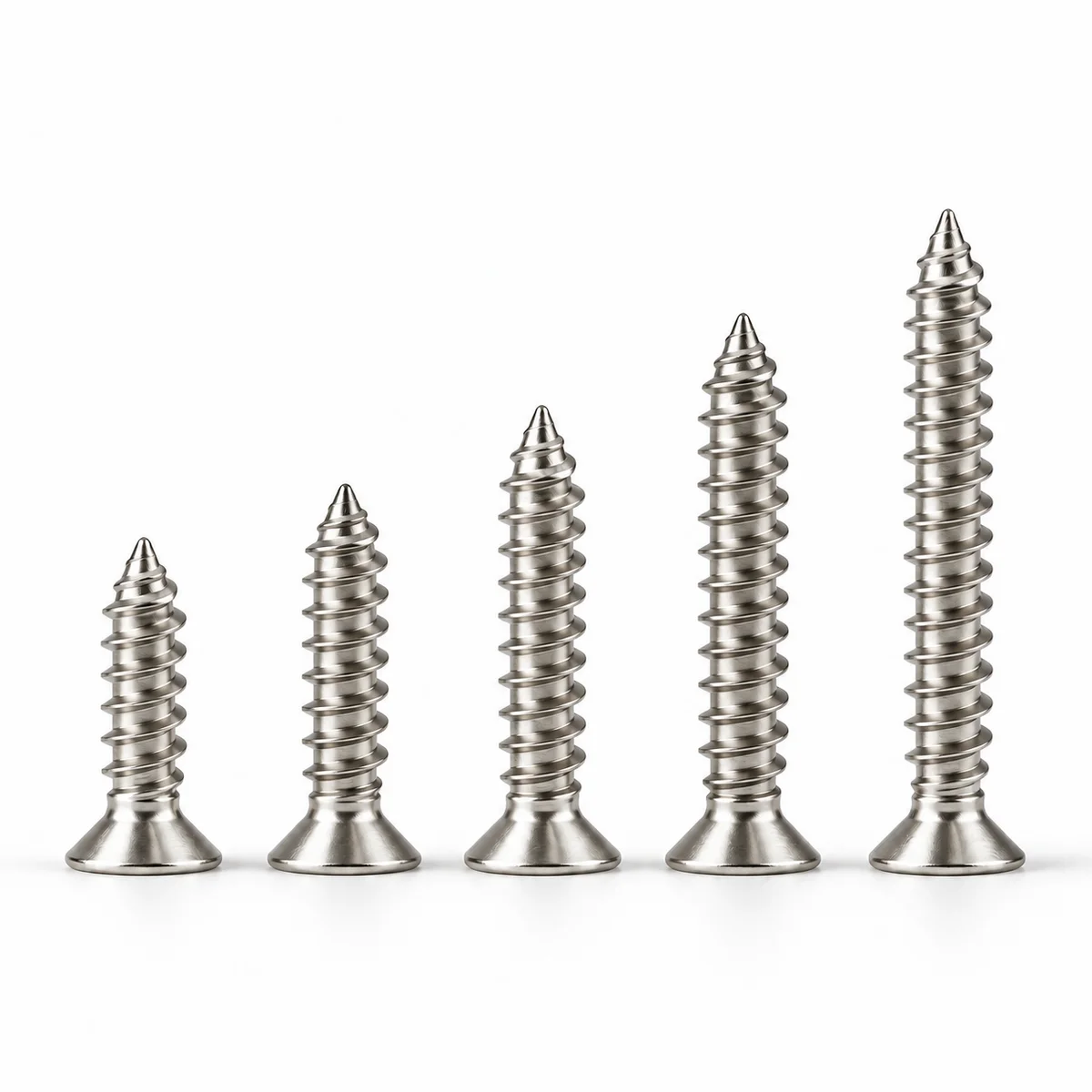

Product photography of the self-tapping screws family. Item shown is a catalog representative; exact specification is confirmed with your quotation.
Countersunk Self-Tapping Screws (KA Series) — Nickel Plated
Countersunk (flat head) cross recess self-tapping screws — sits flush in a countersunk hole while tapping its own thread.
MOQ depends on specification — contact us · Quotation based on quantity and specification. Every inquiry is answered by a person.
Specifications
| Series code | KA series |
|---|---|
| Material | Carbon Steel |
| Finish | Nickel Plated |
| Head type | Flat Countersunk |
| Drive | Cross recess (Phillips) |
| Thread | Self-tapping |
| Size range | Available sizes on request — depends on specification |
| Packaging | standard export packing — details with quotation |
| MOQ | MOQ depends on specification — contact us |
| Lead time | Depends on stock status and sourcing route — confirmed with your quotation |
Applications
- Sheet metal and thin plates where heads must sit flush
- Furniture and cabinet joinery
- Electronics housings with countersunk seats
Technical notes
The cone-shaped head seats into a matching 90° countersink; the tapered tapping thread cuts its own mating thread in the substrate.
Countersink the pilot hole to match the head angle, or the head sits proud and loads unevenly.
Countersunk Self-Tapping Screws (KA Series) — Nickel Plated — FAQ
Do I need a countersunk hole?
For a flush finish yes — the flat head needs a 90° countersink. Without one the screw still clamps, but the head sits above the surface.
Sharp or blunt tip?
These are standard sharp-point self-tapping screws. If your line runs into thicker metal, ask about thread-forming alternatives in your RFQ.
